COMPACT-60B

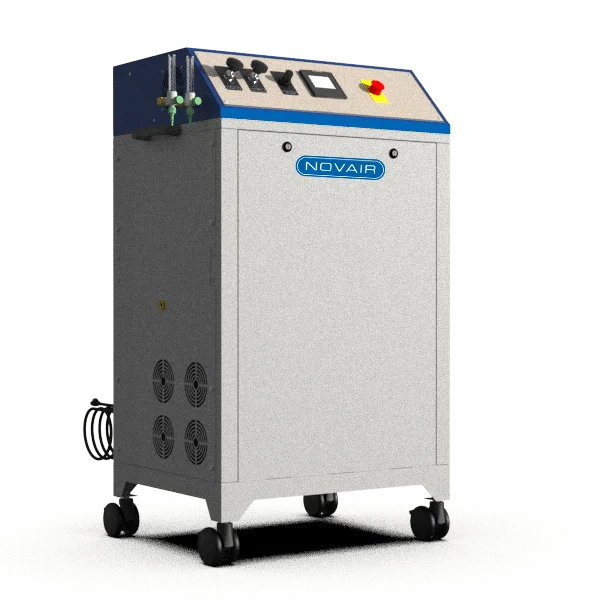

The COMPACT-60B Oxygen GeneratorRequest a quote
Wheel it in, plug it in, turn it on, and start making your own oxygen.
NOVAIR’s COMPACT-60B was designed for rapid deployment in emergencies, or to have in your work area as the perfect ‘oxygen on wheels’ machine that packs a powerful punch–being able to produce 60 SCFH (28 L) of 93% +/-3% oxygen. It includes a built-in air treatment system, PSA production technology, an on-board oxygen purity analyzer along with pressure monitors, and more. It is fully automatic and can come with touchscreen controls. It also comes standard with an emergency stop button, feed air system, and 4″ total-lock caster wheels for mobility and stability.
Other options available include:
- Modifications for high-temperature and high-altitude conditions
- A digital flowmeter
- An external oxygen receiver
- Additional equipment for animal oxygen therapy
If you are working in a veterinary or other similar setting that requires durable onsite oxygen at all times, then wheel in the COMPACT-60B/
Disclaimer: COMPACT-60B is not FDA cleared for direct connection to a facility oxygen delivery system. COMPACT-60B is not designed for human patient use. Patient safety related to the oxygen produced is the full responsibility of the entity producing and using the oxygen for medical purposes. Operators of a COMPACT-60B for use with human patients are wholly accountable for registration as a pharmaceutical manufacturer and performing necessary quality and safety testing related to those guidelines. NOVAIR may assist customers in set-up and operation of our equipment, but such assistance does not constitute a guarantee of safety and performance related to medical use of the oxygen generated. For guidance, please visit the FDA website here.
Basic Product Info
Specification | COMPACT-60B H |
Oxygen Concentration: | 93% (±3%) |
Carbon Dioxide Limit: | ≤ 300 ppm |
Carbon Monoxide Limit: | ≤ 10 ppm |
Oxygen Dewpoint: | -60 °F (-51 °C) |
Oxygen Flow Rate: | 60 Standard Cubic Feet per Hour (SCFH) / 28.3 Liters Per Minute (LPM) |
Oxygen Pressure: | Up to 55 psi (4 bar) |
Power Supply: | 1 Phase, 230 VAC 15 A, 50 Hz |
Noise Level: | 59 dBA at 1m |
Unit Size: | 24in D x 54in H x 30in L (61cm D x 137cm H x 76cm L) |
Unit Weight: | 350 lbs. (159 kg) |
