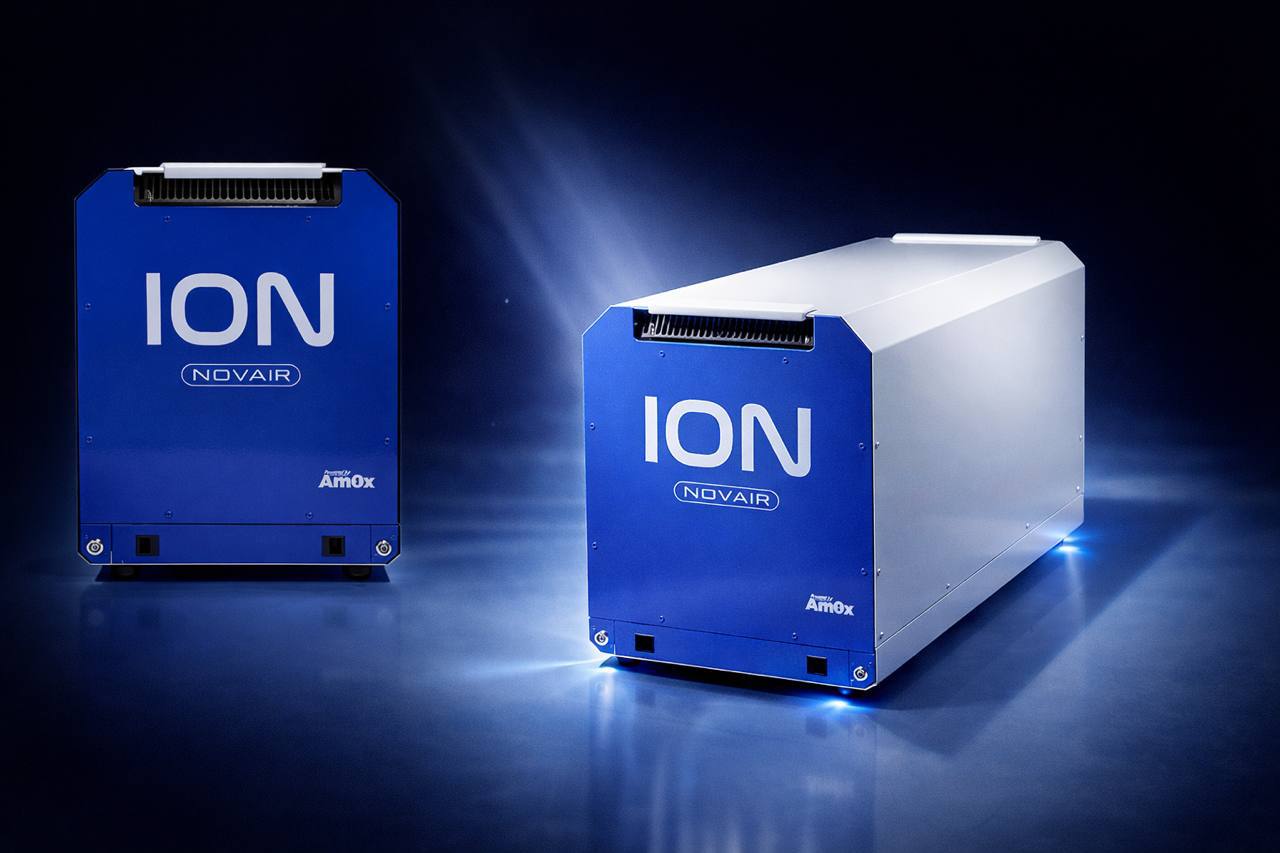

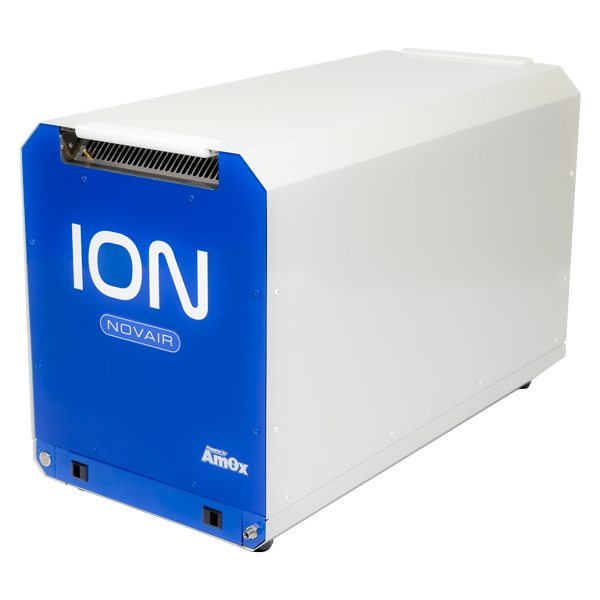

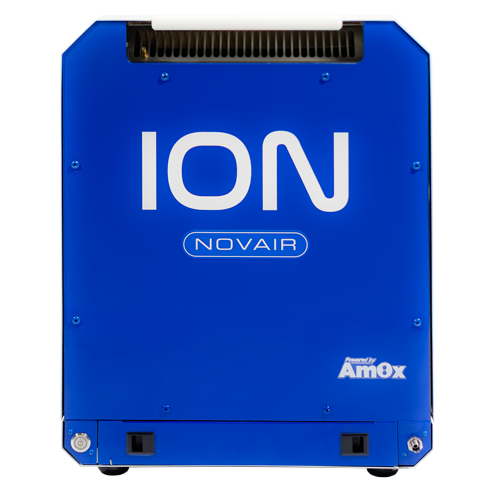

ION Oxygen Generator
Ultra-pure oxygen produced in-houseRequest a quote
A revolution in on-site oxygen generation.
A compact, quiet, reliable ionic oxygen generator developed using ceramic technology to produce high purity oxygen directly from the limitless air we breathe. It's a tremendous technological breakthrough in the air gas industry!
The atmosphere is virtually an endless source of free oxygen. Using a specialized non-porous ceramic membrane, with technology developed jointly with NASA scientists for the Space Station, ION’s electrochemical process selectively converts gaseous molecular oxygen into atoms of ionized oxygen. These atoms are immediately drawn into the front-side of a solid ceramic crystal which only accepts oxygen ions. A small, applied DC voltage, (smaller than 1 volt), forces oxygen ions to migrate through the ceramic crystal until they emerge on the backside of the ceramic membrane and are immediately converted back into molecular oxygen.
Advantages and Features
Advantages
Easy integration
NOVAIR's ION generator is designed to be compact, quiet, and easy to use. Perfect for laboratories or aviation, the ION creates ultra pure oxygen for these applications. Its truly compact size allows it to fit in an existing facility or aircraft. The ION operates quietly, requires minimal maintenance, and is plug-and-play for easy use.Laboratory Applications
- Carbon, Hydrogen, Nitrogen, Sulfur (CHNS) elemental analysis applications
- Protein content analysis using ‘Dumas’ methods
- Inductively Coupled Plasma (ICP) analysis
- Total Organic Carbon (TOC) analysis
- Sulfur Chemiluminescence Detectors (SCD)
- Aerobic reactions
Features
Key Features
- 6.4 SCFH (3LPM) oxygen flow
- Oxygen concentration: 99.99% (HP Version) and 99.9999% (UHP Version)
- Designed for 24 x 7 x 365 operation
- Very low maintenance
- Durable, reliable, not sensitive to humid environments
- Operates quietly at < 55 dB(A) at standard flow*
- 1 kW average power consumption
- Eco-friendly
Target Customers
Typical customers for this system include those working in laboratories, the military, aviation, and more.Product Specs
| Specification | ION Generator |
| Standard oxygen flow: | 6.4 SCFH (3 LPM) (.018 Nm3/hr) |
| Output oxygen pressure: | 100 psi (6.89 bar) |
| Sound level: | 55 dB(A) at 3ft (1m) |
| Power supply: | 115 VAC, 60 Hz, 1 Phase, 20 Amp Circuit |
| Average power consumption: | 1 kW |
| Operating environment: | Min: -4 °F (-20 °C), Max: 122 °F (50 °C) |
| Oxygen outlet fitting: | 1/4" Compression fitting |
| Oxygen concentration: | 99.99% HP Version, 99.9999% UHP Version, < 1 ppm Nitrogen |
| Approximate weight: | 160 lbs. (73 kg) |
| Dimensions: | 34" L x 16" W x 23" H (86cm L x 41cm W x 58cm H) |
Speak With a Representative
Ultra-pure oxygen produced in-house
Produce your own ultra-pure oxygen and have an on-demand supply to avoid delivery costs and hassles. Speak with a NOVAIR representative today to determine if the ION is right for you.
Revolutionary Ionic Technology
ION’s electrochemical process selectively converts gaseous molecular oxygen into atoms of ionized oxygen using a specialized non-porous ceramic membrane. With a small applied DC voltage, oxygen ions migrate through ceramic crystal until they emerge on the other side of the membrane and are immediately converted back into molecular oxygen.ION FAQ's
How was ionic technology developed?
How does the technology work?
Is this technology patented?
Is ION noisy?
What is the lifespan of an ION?
What kind of maintenance does ION require?
Does ION require training or special skills from the facility staff?
How fast does ION produce oxygen once powered?
Is ION price-competitive compared to cylinder or liquid oxygen?
Is ION price-competitive compared to PSA/VSA oxygen plants?
Where will the generators be manufactured?
