MOGSCFP
Mobile Oxygen Generating System with Cylinder Filling Plant - Versatile, Economical, Durable, Powerful!
You are here:
The only onsite oxygen generator manufacturer to offer equipment with trans-filling in a protective blast containment drawer
Oxygen Onsite, On-demand, 24×7

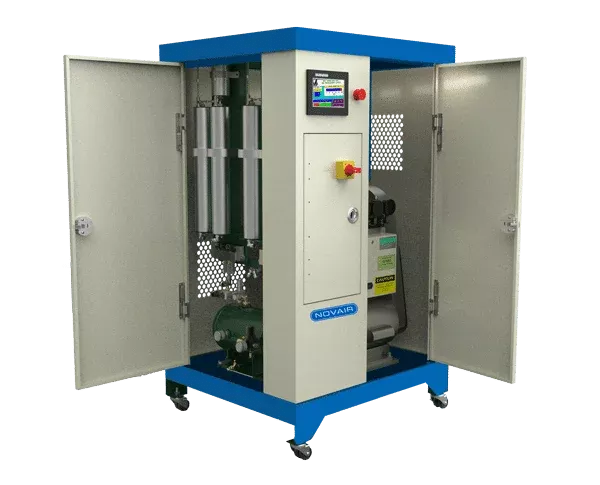

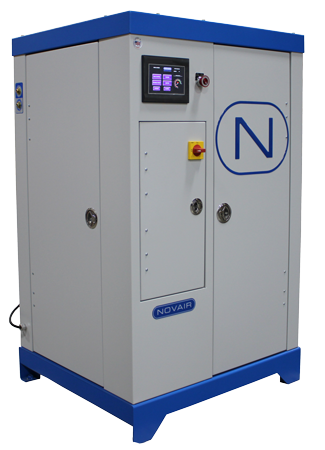

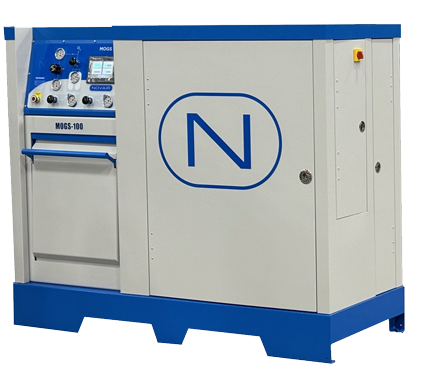

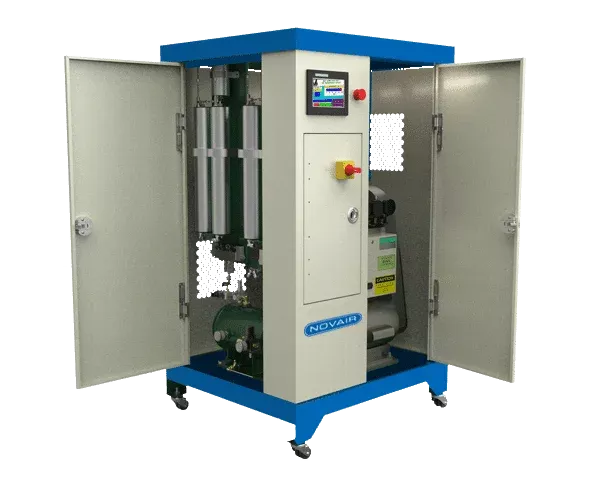

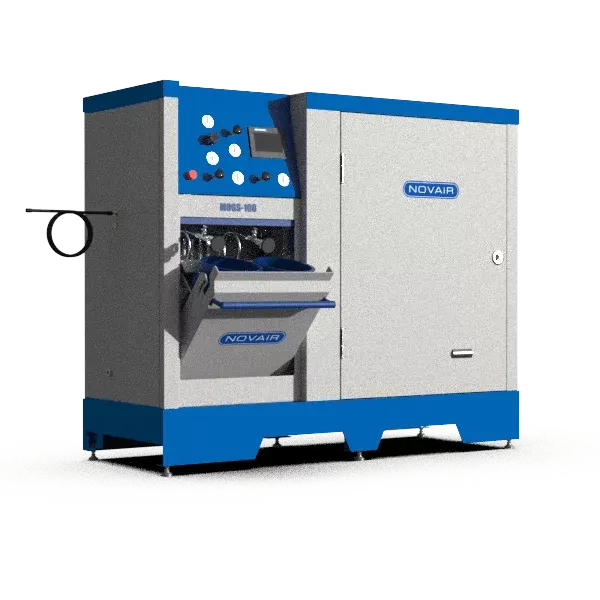

NOVAIR’s Mobile Oxygen Generating System Cylinder Filling Plant or MOGSCFP, (available in MOGS-20, MOGS-50 and MOGS-100 models), has been designed in our US factory for durable use to produce oxygen onsite whenever needed, 24×7, filling high pressure cylinders of up to 2200 psi. This system uses oil-free air compressors and modular oxygen generators for redundancy and reliability.
High Quality Oxygen Output
The system produces high quality oxygen output of 93% +/-3%, with many quality and safety features, such as continuous gas quality monitoring and automatic shutdown in an emergency.
Perfect for Use in Emergencies
NOVAIR’s US-made MOGSCFP line of oxygen generators are perfect for a range of needs including filling D-size firefighter oxygen bottles, installing in ambulance and EMS facilities, aiding in disaster preparedness, healthcare applications, and much more.
Advantages and Features
Avantages
Cost Reduction
- This system can reduce oxygen supply costs by 80% or more in most cases.
- Less than 5 kWh of energy is required to fill one ‘H’-size oxygen cylinder, with all delivery and handling charges from your current supplier eliminated.
- By making your own oxygen and filling cylinders at your site, the uncertainty, safety headaches, worker’s compensation threats, and logistics nightmares associated with oxygen delivery are all completely eliminated.
Perfect for EmErgencies and Disasters
- With this system in place care first responders are assured that in the event of a disaster their oxygen supply chain will not be in jeopardy.
- The system itself can also be transported for use to a disaster site. It can be moved by truck and fits easily through a standard 36″ wide doorway.
Versatility
- The MOGSCFP means you receive a state-of-the-art and newest member of the NOVAIR oxygen generator family that was specially designed to fit through a standard door frame, but powerful enough to fill numerous cylinders of oxygen per day
- With several options, and even the ability to fit in trailers, NOVAIR’s MOGSCFP is something that no fire chief, EMS supervisor, or others in charge of teams of first responder should be without.
Good for 1st RESPonders and for the Planet
- The MOGSCFP means you receive a state-of-the-art and newest member of the NOVAIR oxygen generator family that was specially designed to fit through a standard door frame, but powerful enough to fill numerous cylinders of oxygen per day
- With several options, and even the ability to fit in trailers, NOVAIR’s MOGSCFP is something that no fire chief, EMS supervisor, or others leading teams of first responder should be without.
Features
SAFE, Reliable, Rapid Cylinder Filling
Key Features
- Small footprint – All MOGS models can fit through standard 36″ doorway
- PLC controller with NEMA 4 electrical enclosure and UL® listed electrical panel
- Touchscreen operated human machine interface (HMI) panel
- Two H-sized oxygen cylinders installed in an integral rack, (MOGSCFP 50/100 only)
- Emergency-stop button
- Sound attenuating enclosure with slam-action latches and lift-off hinges (MOGSCFP 50/100 only)
- Two position containment fill station accommodates oxygen cylinders up to 31″ overall length, (MOGSCFP 50/100 only)
Options
- Remote fill hose with up to 75 ft. of high pressure 3,000 psi hose for direct refilling of cylinders on ambulances, without removing them from the vehicle.
- Separate blast containment chamber can be an add on piece to a MOGSCFP-20.
- Additional multi-valve manifolds, cylinders, and other related equipment available.
- Rubber wheels (casters) for easier manual movement.
MOGSCFP Oxygen Cylinder Filling
Model |
D Cylinders / Day |
E Cylinders / Day |
M Cylinders / Day |
H or K Cylinders / Day |
|---|---|---|---|---|
|
MOGSCFP-20 |
33 |
20 |
4 |
2 |
|
MOGSCFP-50 |
80 |
50 |
9 |
5 |
|
MOGSCFP-100 |
160 |
100 |
18 |
10 |
Typical Customers
- Typical customers for this system include anyone in the Emergency Medical Services industry that uses oxygen cylinders (ex. Fire Stations, Ambulance Services) along with Healthcare Facilities, Clinics, Disaster Preparedness Shelters, Nursing Homes and Veterinary Centers.
Contact us and talk with a US-based sales rep today to configure the system that works best for your application.
