COMPACT-20

COMPACT Oxygen Generator for a range of applications

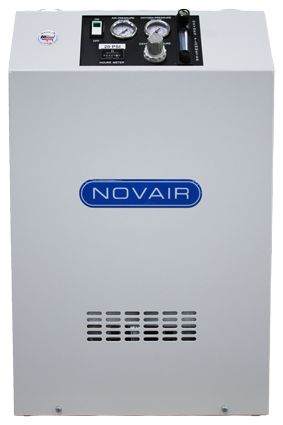

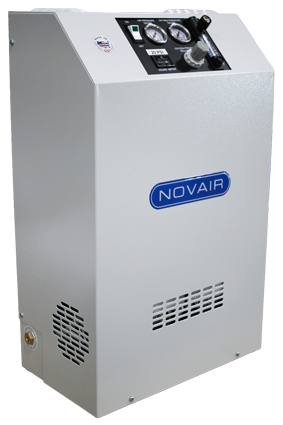

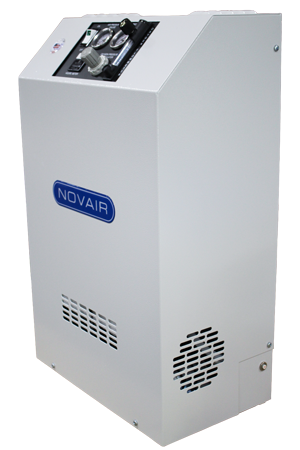

NOVAIR USA COMPACT-20 Oxygen Generator

The mighty-might of oxygen generators, that fits in your hands, but is powerful enough for many industrial uses.

NOVAIR’s COMPACT-20 is small, but powerful. It can meet your need for oxygen as it is a total plug-and-play oxygen generator that can be simply carried to any facility, plugged in, and immediately begin producing quality oxygen for a variety of needs. While the flow rate is smaller than some of NOVAIR’s larger units, don’t let the size fool you. It can produce large amounts of 93% +/-3% oxygen, while not costing tons of money, making it ideal for so many uses where a compact yet powerful oxygen generator is needed. Some of the industries for which the COMPACT-20 is ideal are glass blowing, waste treatment, aquaculture and fish farming, metal fabrication, hydroponics, jewelry manufacturing, among others.

The COMPACT-20 is a completely self-contained steel-covered full oxygen generator that is slightly over 2 feet tall and only 74 lbs., fitting just about anywhere. The durable COMPACT-20 includes an internal air compressor, aluminum sieve beds with state-of-the-art molecular filtration materials, and flow control systems designed for continuous use. Producing up to 22 SCFH (or 10 Liters Per Minute at 1-15 PSIG) of oxygen, the high-quality industrial strength COMPACT-20 provides years of dependable, reliable, and maintenance-free operation. Options include a 230 VAC/50/60 Hz Model, reduced noise option, extra inlet air filter, set of anti-vibration feet (4), set of casters (4), pressure switch and relief valve (psi deviation), and a bacteria filter (installed).

Basic Product Info

Specification
COMPACT-20

Oxygen Concentration:

93% (±3%) depending on flow rate

Carbon Dioxide Limit:

≤ 300 ppm

Carbon Monoxide Limit:

≤ 10 ppm

Oxygen Dewpoint:

-60 °F (-51 °C)

Oxygen Flow Rate:

20 Standard Cubic Feet per Hour (SCFH) / 9.5 Liters Per Minute (LPM)

Oxygen Pressure:

Up to 15 psi (1 bar)

Power Supply:

1 Phase 6A, 115 VAC, 60 Hz or 1 Phase 3A, 230-240 VAC, 50-60 Hz

Noise Level:

68 dBA at 1m / 55 dBA at 1m with quite muffler option

Unit Size:

10in D x 28in H x 17in L (26cm D x 71cm H x 43cm L)

Unit Weight:

80 lbs. (36 kg)

COMPACT-20 The mighty-might of O2 generators
Powerful, COMPACT, and economical. Contact us to learn more and get a price quote.
COMPACT-20 The mighty-might of O2 generators
Powerful, COMPACT, and economical. Contact us to learn more and get a price quote.
