The industry-leading oxygen generator with the unique blast-containment filling drawer

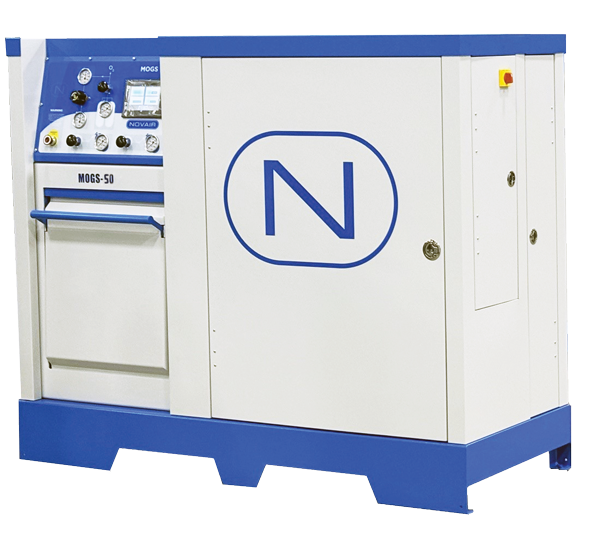

NOVAIR’s Mobile Oxygen Generating System with Cylinder Filling Plant-50 (MOGSCFP-50) is a well-engineered, well-thought-out continuous oxygen generator and cylinder filling plant that is big enough to generate tons of oxygen, but compact enough to fit through a standard door frame. The MOGSCFP-50 can integrate with cascade systems, or stand alone to fill D-sized cylinders in its industry-unique blast-containment filling drawer (only matched by the one on the MOGSCFP-100). With the MOGSCFP-50, you will always have 93% +/-3% pure oxygen onsite, on-demand, on-hand 24×7.
Oxygen generated from the MOGSCFP-50 can fill 5 H-sized or up to 80 D-sized high-pressure cylinders of up to 2200 psi oxygen in a single day. Many additional features are available on the MOGSCFP-50, and it can always be tailored as well to meet your specific needs.
The MOGSCFP-50 fits well in firehalls, EMS facilities, and anywhere powerful and plentiful oxygen generation is needed to fill cylinders. Talk to us today about whether the MOGSCFP-50 or its cousin, the MOGSCFP-100, is the right size for you needs.
Disclaimer: MOGSCFP-20 is not FDA cleared for direct connection to a facility oxygen delivery system. MOGSCFP-20 is designed for cylinder filling purposes only and patient safety related to the oxygen produced is the full responsibility of the entity producing and using the oxygen for medical purposes. Operators of a MOGSCFP-20 are wholly accountable for registration as a pharmaceutical manufacturer and performing necessary quality and safety testing related to those guidelines. NOVAIR may assist customers in set-up and operation of our equipment, but such assistance does not constitute a guarantee of safety and performance related to medical use of the oxygen generated. For guidance, please visit the FDA website here.
Basic Product Info
Specification |
MOGScfp-50 |
|---|---|
|
Oxygen Concentration: |
93% (±3%) |
|
Carbon Dioxide Limit: |
≤ 300 ppm |
|
Carbon Monoxide Limit: |
≤ 10 ppm |
|
Oxygen Dewpoint: |
-60 °F (-51 °C) |
|
Oxygen Flow Rate: |
50 Standard Cubic Feet per Hour (SCFH) / 24 Liters Per Minute (LPM) |
|
Oxygen Pressure: |
Cylinder Filling up to 2200 psi (151 bar) |
|
Power Supply: |
1 Phase, 230 VAC 30 A, 50/60 Hz |
|
Noise Level: |
65 dBA at 1m |
|
Unit Size: |
32in D x 70in H x 84in L (82cm D x 178cm H x 214cm L) |
|
Unit Weight: |
2,550 lbs. (1,157 kg) |
