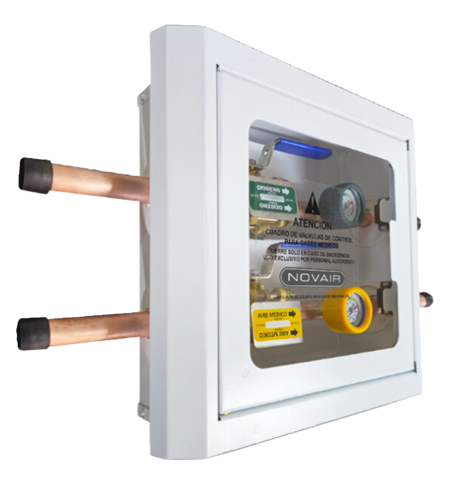

Zone Valve Box
Built for Safety, Simplicity, & Space EfficiencyRequest a quote
NFPA 99 Compliant, Made in the USA with Easy Access Window
Reliable with Easy Access
Our Zone Valve Boxes are engineered to provide fast, reliable shut-off of medical gas lines in critical care areas — ensuring safety, compliance, and peace of mind. Designed and manufactured in the USA, each unit is built to meet or exceed NFPA 99 standards and is available in a wide range of configurations to suit any facility layout.Features and Specifications
Features
INCLUDES
- Copper pipe extensions: type K copper pipe cleaned for use with oxygen (complies with ASTM B819).
- Coupling port: for analogue pressure gauge (positive or negative pressure gauge).
- ID tag: for gas as well as flow direction.
- Emergency port and gauge installation: ¼” threaded coupling made from brass. If included, goes on the left copper pipe extension.
- Positive and/or negative pressure gauges: ½” or 2” body size pressure gauge for either positive or negative pressure, ¼” back connector.
Specifications
Materials
- Box: Made from 18-gauge steel, 3 pieces screw-in assembly and painted in white powder coating. Includes ABS white plastic caps that cover the valve placement holes (and also to avoid galvanic corrosion). Includes a hinged window also made with 18-gauge steel, it closes via a magnetic seal. The window is made from a 3mm acrylic glass. For use only indoors.
- Isolation Valves: Includes ball valves for 600 psi to comply with the NFPA 99 code. The valves are three bodied made of brass with stainless steel ball and a ¼ turn handle. Weldable ends to be welded with type K copper extension pipes (pipes comply with ASTM B819).
Box Depth
- We offer the valve box with a depth of either 3.9 in (100 mm) or 5.5 in (140 mm). Box depth depends on client specification or on valve configuration (2” valves cannot be placed in a 3.9 in depth box).
Isolation Valves
- Number, size, configuration and gas type for each valve must be specified by the client.
Zone Valve Box
Zone valve boxes built for safety, simplicity, and space efficiency. Contact us us to learn more and get a price quote.Reliable with easy access
NOVAIR zone valve boxes are NFPA 99 compliant and made in the USA with an easy access window. Our top-quality product means fast and reliable shut-off of medical gas lines in critical care areas. Contact us us to learn more and get a price quote.See Other Medgas Pipeline Systems
